Moving Towards a Finalized Design

| 0 comments

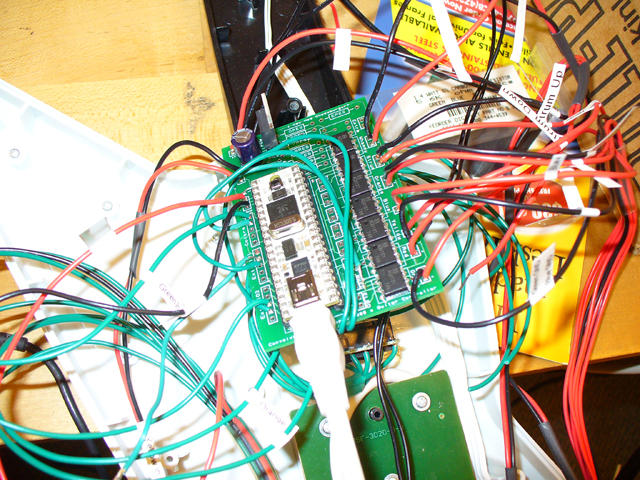

Today was dedicated to getting a working prototype of the guitar in its nearly final form. Since we have redesigned the control board, we modified the original design by cutting connections and jumpering pins to get it working with the programming. This is only temporary for testing purposes. All of the guitar connections were soldered so that so we could test…it’s still a mess right now, but that’s because we don’t want to cut the wires down until everything is completely finalized. The track that the sensors will mount on should be done tomorrow, we just need to get some clear adhesive for the plexiglass.

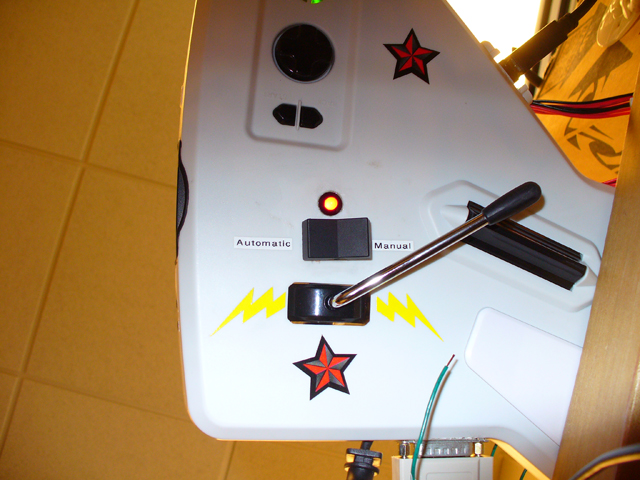

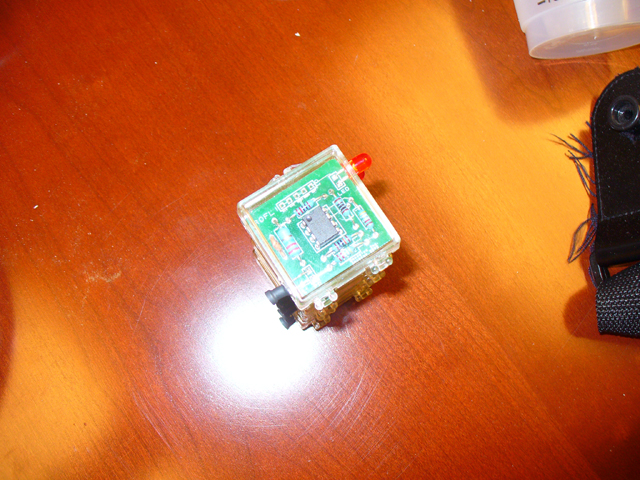

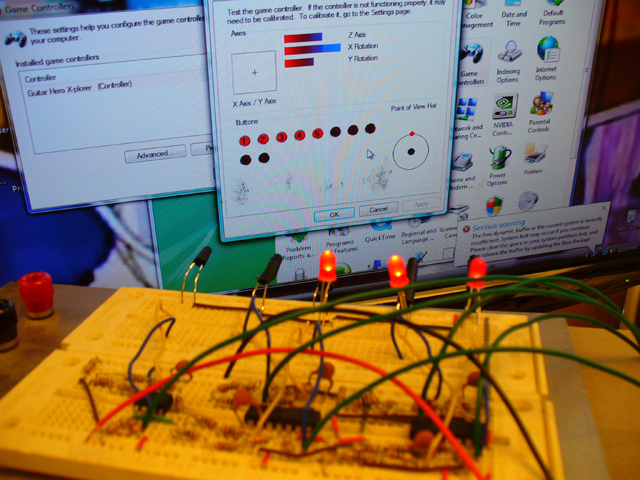

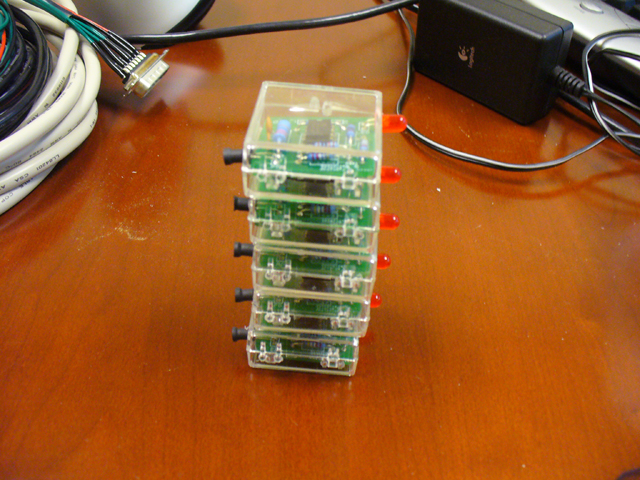

Following are some pictures from today:
