My masters graduation cap sported 16 LEDs, internet connectivity, a full linux computer, a custom PCB, and a 87 Watt-Hr Battery.
Lighting up Graduation
In 2012, when I completed my undergraduate degree at Cornell University, I had a last minute idea to put an LED array on my graduation mortar board. The night before graduation I wired up a bunch of LEDs to a protoboard and an Arduino. The resulting product worked well, and garnered all kinds of excited remarks from friends and onlookers. But, it wasn’t bright enough in the outdoor sunlight, and it left me yearning to do something a bit more … intense.
Lucky for me, I stayed at Cornell for a fifth year to get my Masters degree in Electrical Engineering, and I therefore got to graduate again. This time, I was determined to do something over-the-top. Utilizing the super-high-intensity LED circuit board that I had designed for my masters thesis on Hybrid Fiber Optic LED Lighting, I built a web-connected LED graduation cap that would be truly ridiculous. Graduations can be a bit boring, so I wanted to develop an interactive platform (on my head) that others could fiddle with during the ceremonies. And thus, the “Control my Cap” project was born.

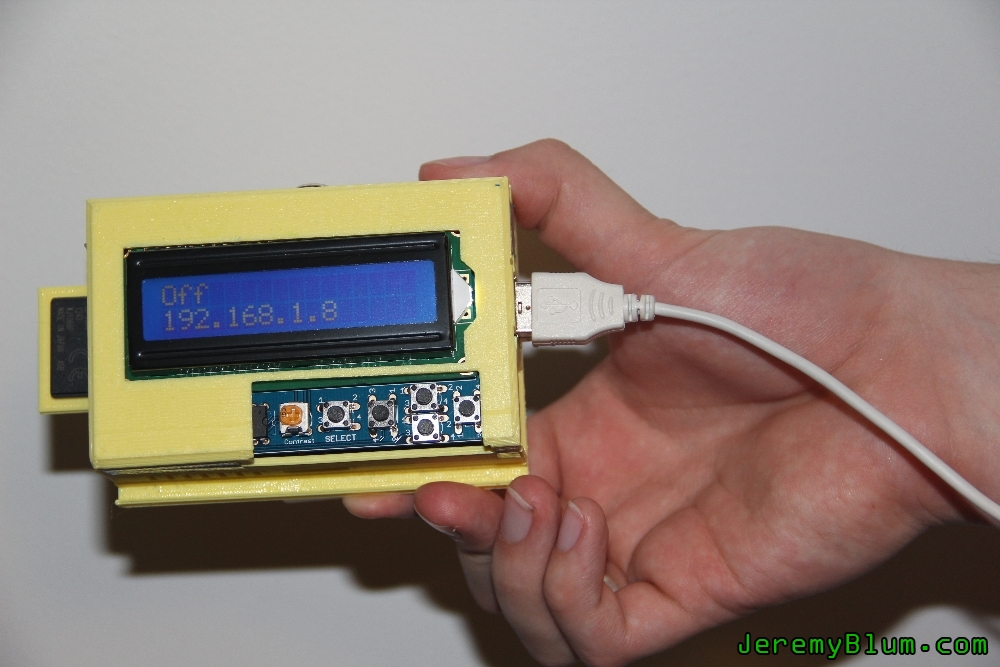

- A menu system on my wrist computer (a Raspberry Pi plus an LCD/button interface) allows me to monitor the status of the cap, change the operation mode, toggle the wrist backlight, and adjust the brightness of the cap.
- The system can automatically connect to a list of pre-allowed WPA-protected WiFi hotspots on boot.
- The wrist computer will inform me if it has trouble communicating with the Cap interface.
- I can use the wrist interface to set the cap to web-controlled mode, or I can choose from a static color, or a rainbow color pattern.
- A mobile website at controlmycap.com allows anybody to easily submit colors for the cap’s color queue.
- In web controlled mode, the wrist computer constantly grabs the 10 most recently-submitted colors from the mobile site, and displays them on the cap. When a color is shown for the first time, the Raspberry Pi sends out a tweet to the color requester to tell them that their color is now being displayed.
- The Raspberry Pi communicates with the cap and is powered by a single USB cable, making equipping the unit easy.
- The Raspberry Pi can be worn on the wrist, and all relevant information is displayed on the screen.
The best way to explain the “Control-my-Cap” system is via video, so I suggest you watch this first. Scroll down for further details about the system, photos, source code, and more!
Breaking down the “Control my Cap” System
My web-connected graduation cap turned out to be a very complex endeavor – I worked on it non-stop for the 4 days before graduation, and finished the last part the morning of graduation. The system consists of several components:

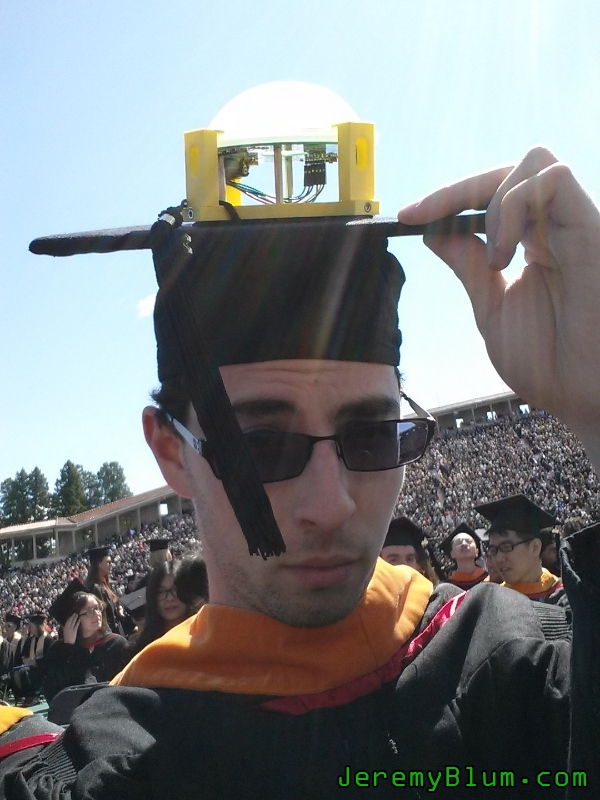

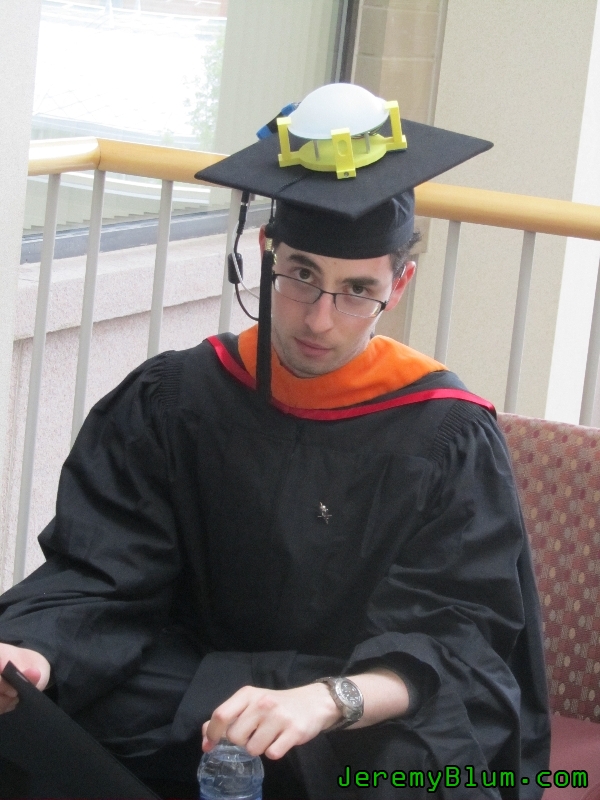

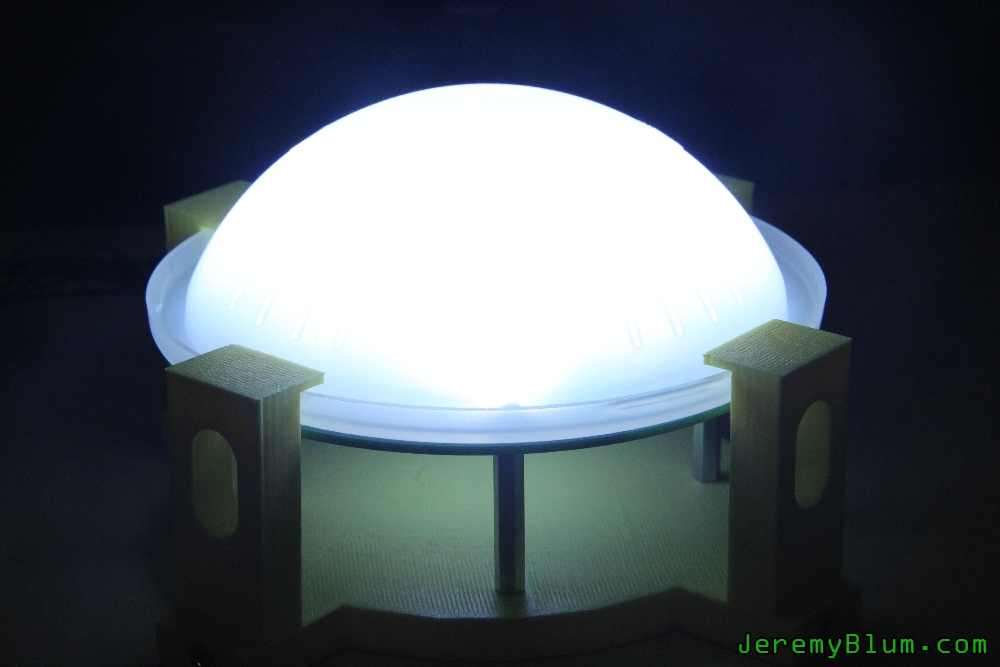

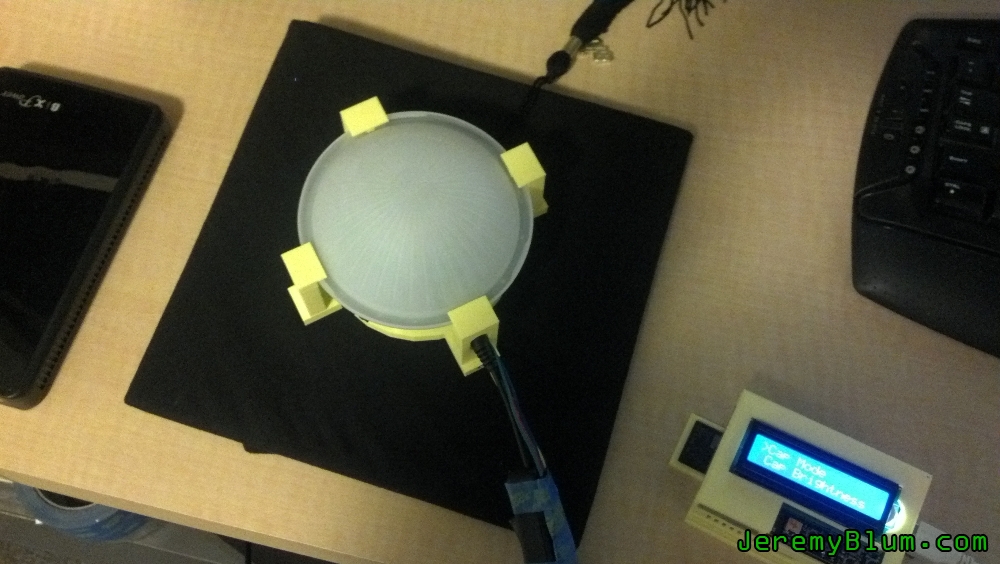

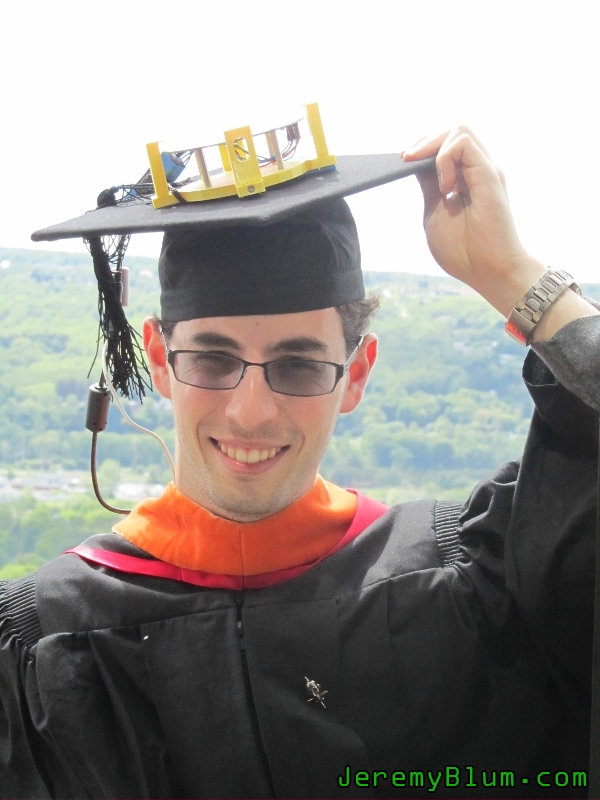

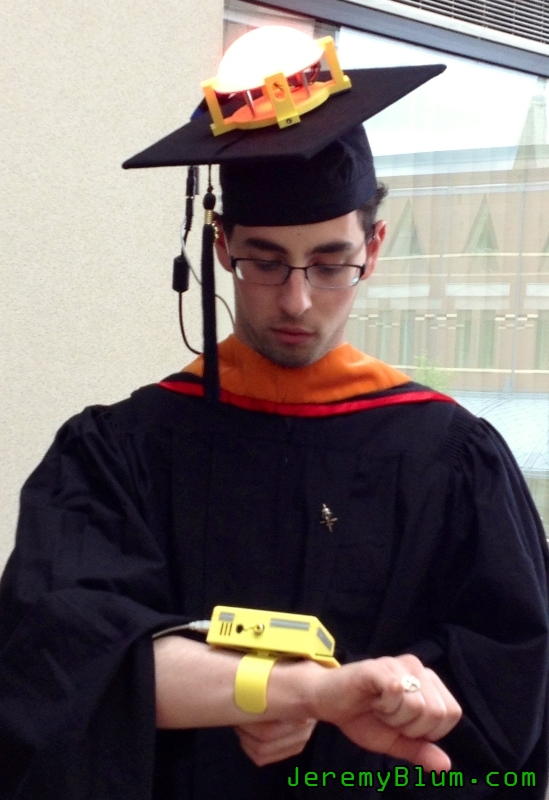

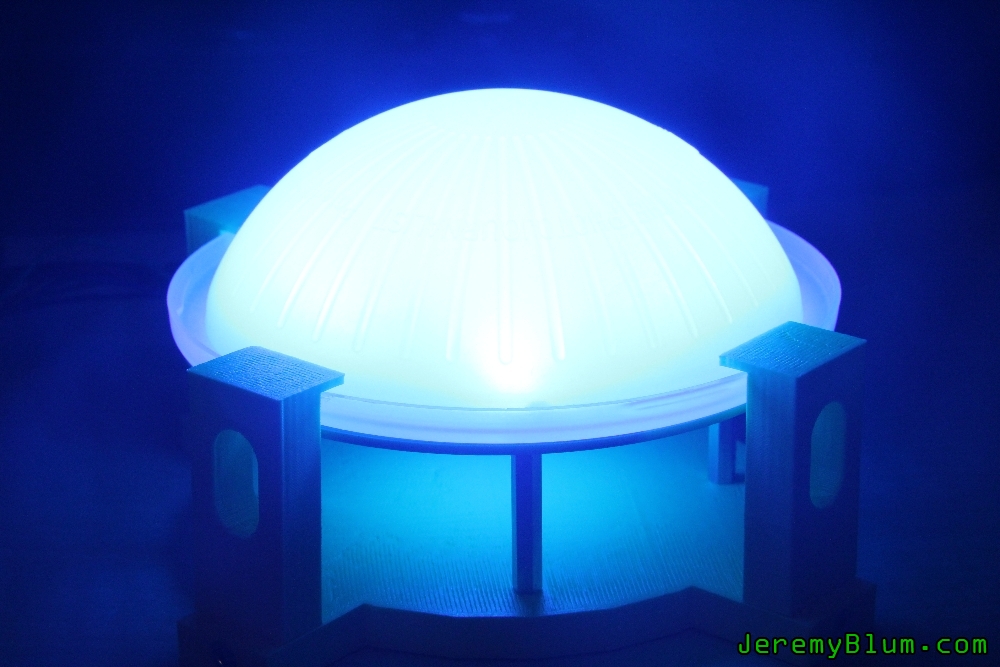

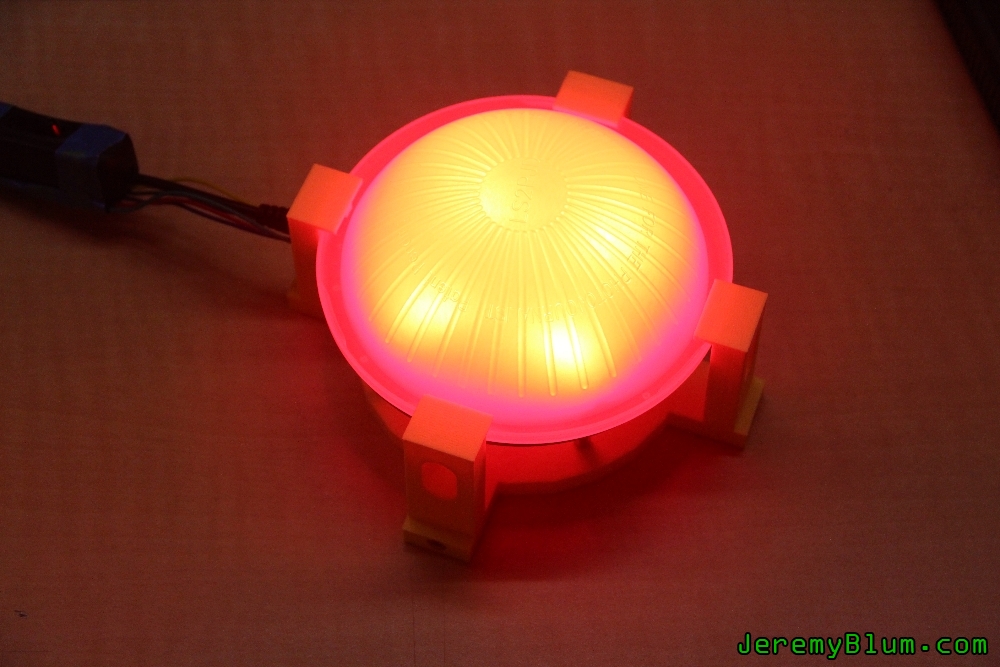

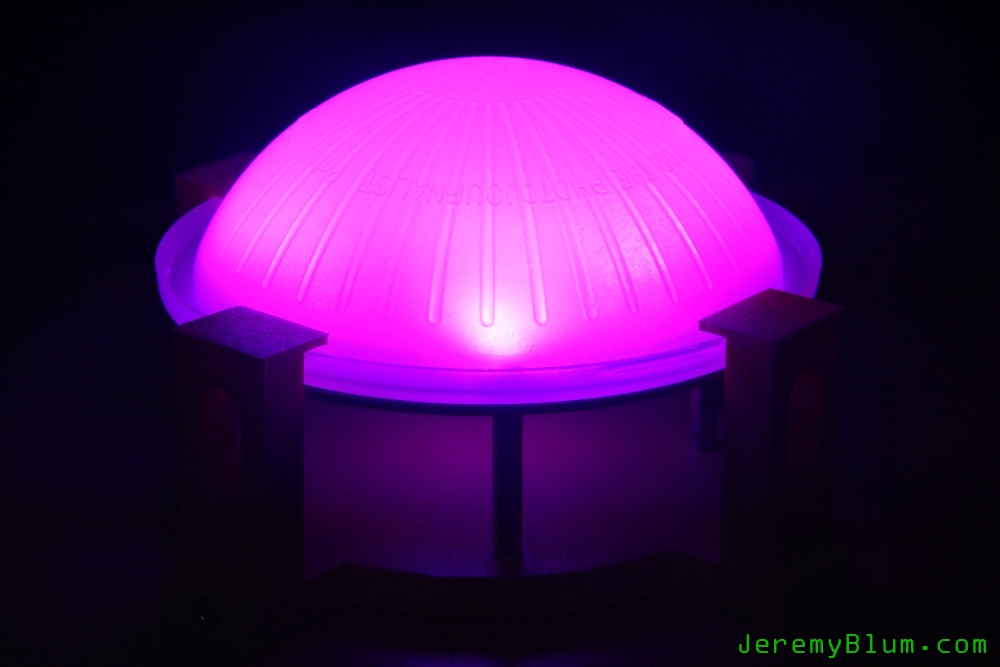

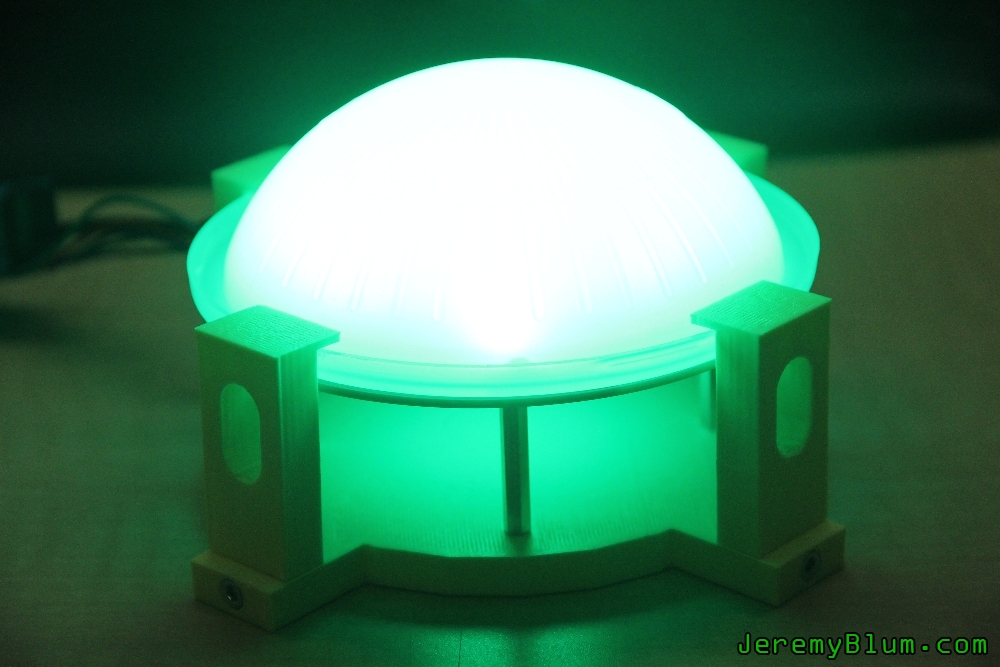

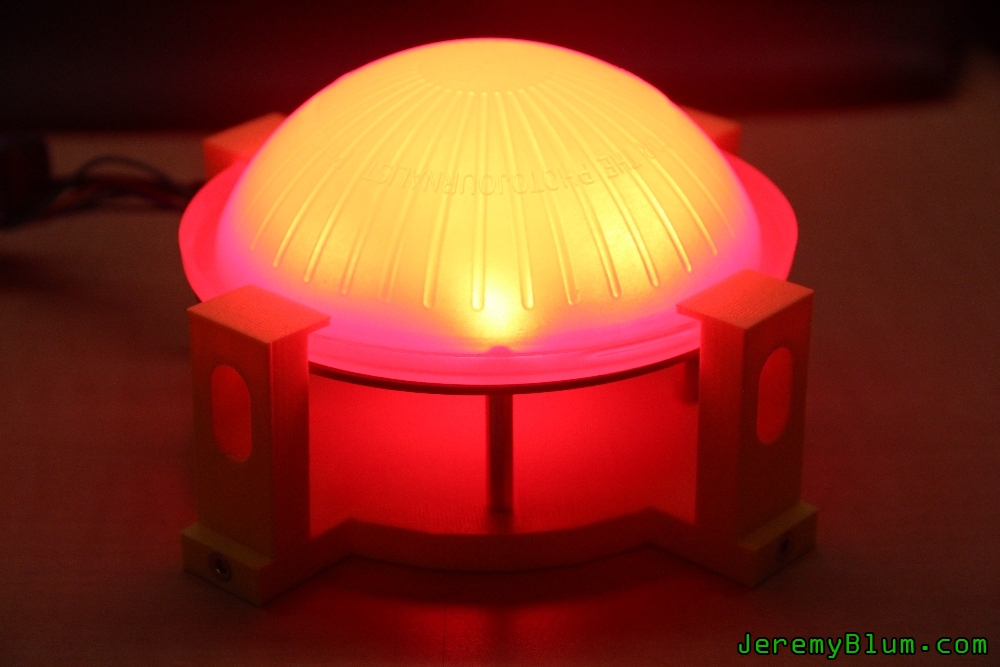

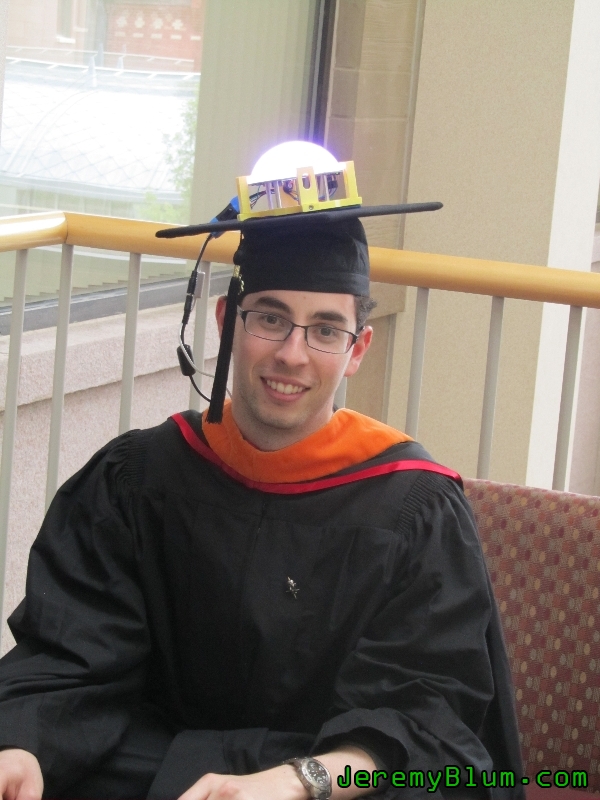

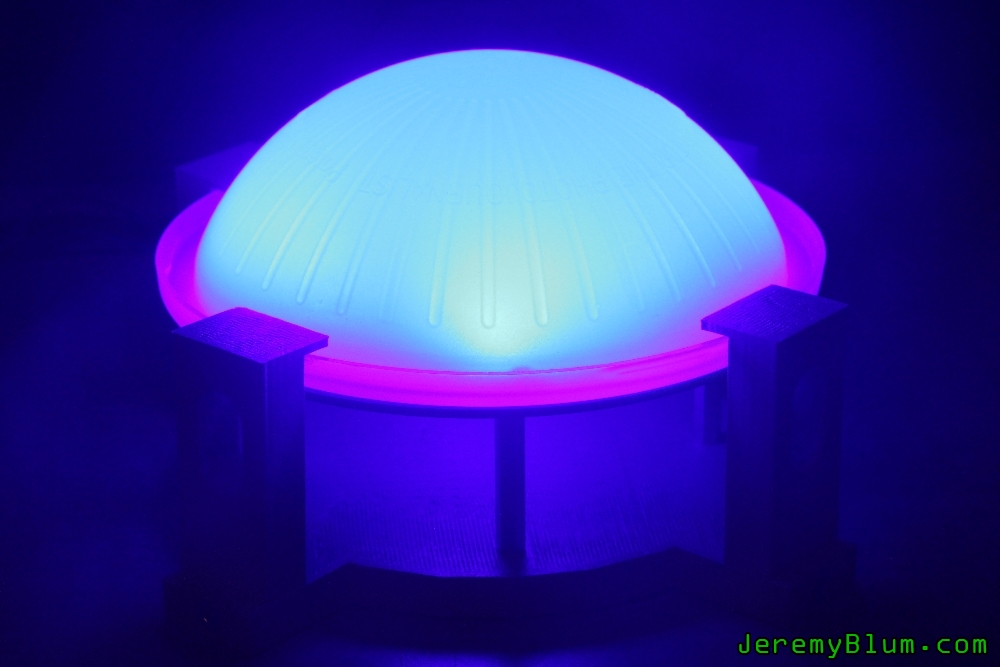

- The LED Cap PCB and Holder. I designed and 3D printed a custom holder that would affix my existing LED circuit board safely to my mortar board while simultaneously securing a flash diffuser from a camera above it (to protect the circuit board, and to prevent my cap from blinding people). The circuit board is an Arduino clone, running firmware that responds to serial commands to set the LEDs to any requested brightness. It is equipped with a total of 16 350mA high-brightness LEDs (4 each of Red, Green, Blue, and White). The PCB is fed 15V and drops it over each of the 4 LED colors in series (4 parallel strings of 4 LEDs). Each series of LEDs is driven by a constant current driver with PWM control. An on-board switching regulator generates 5V for the logic.
- The Battery Pack. I bought a rechargable 15V/5V/12V Laptop backup battery to serve as my battery for the system. It is an 87 Watt-hr capacity battery, enough to keep the cap going on full brightness all day without a problem. It conveniently has a 5V USB port which I used to keep my phone charged.

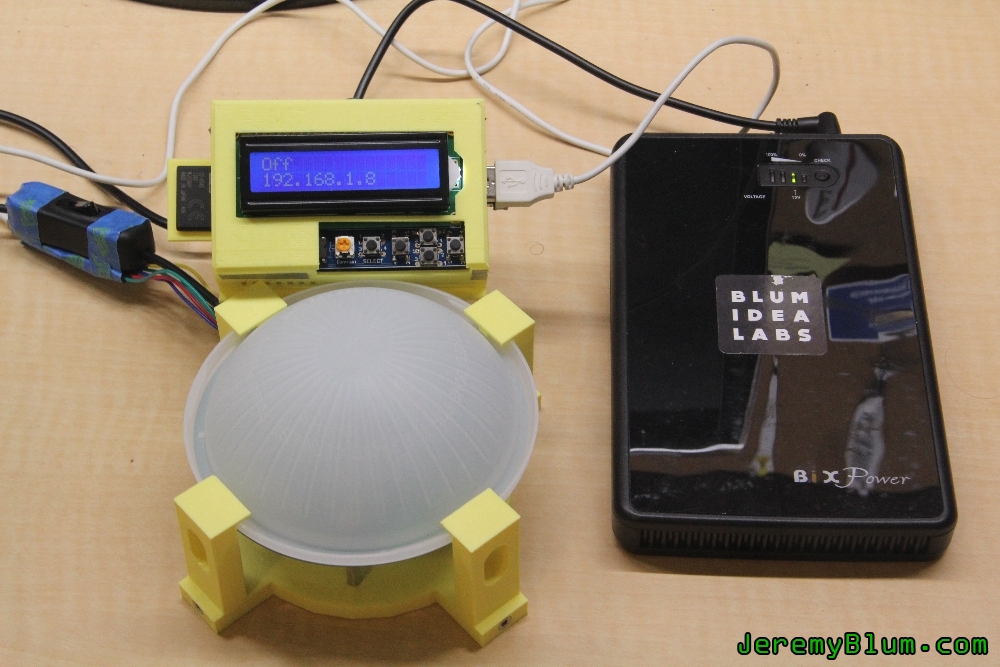

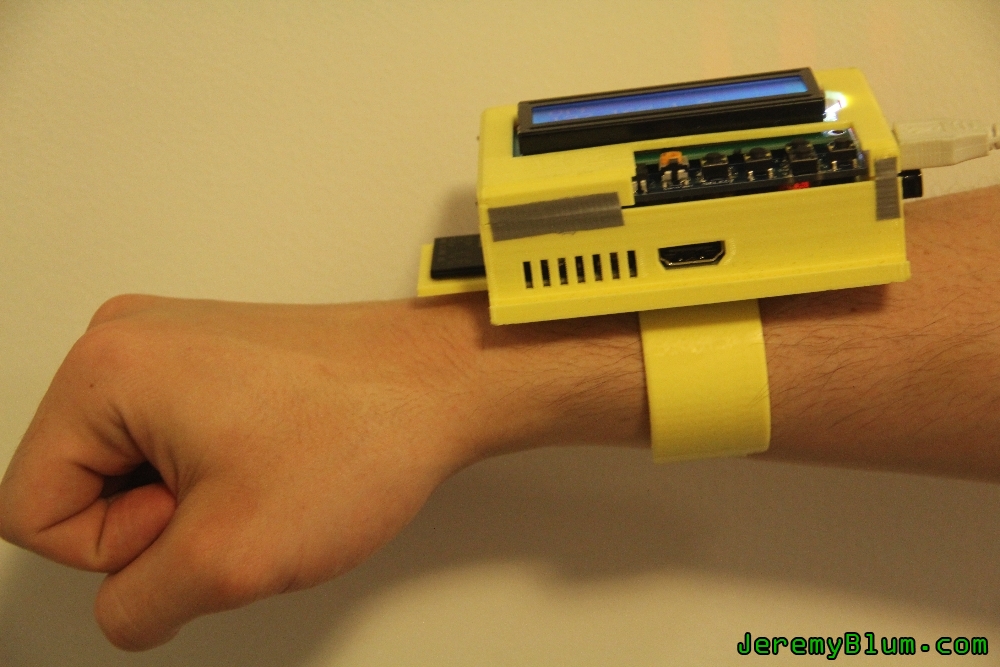

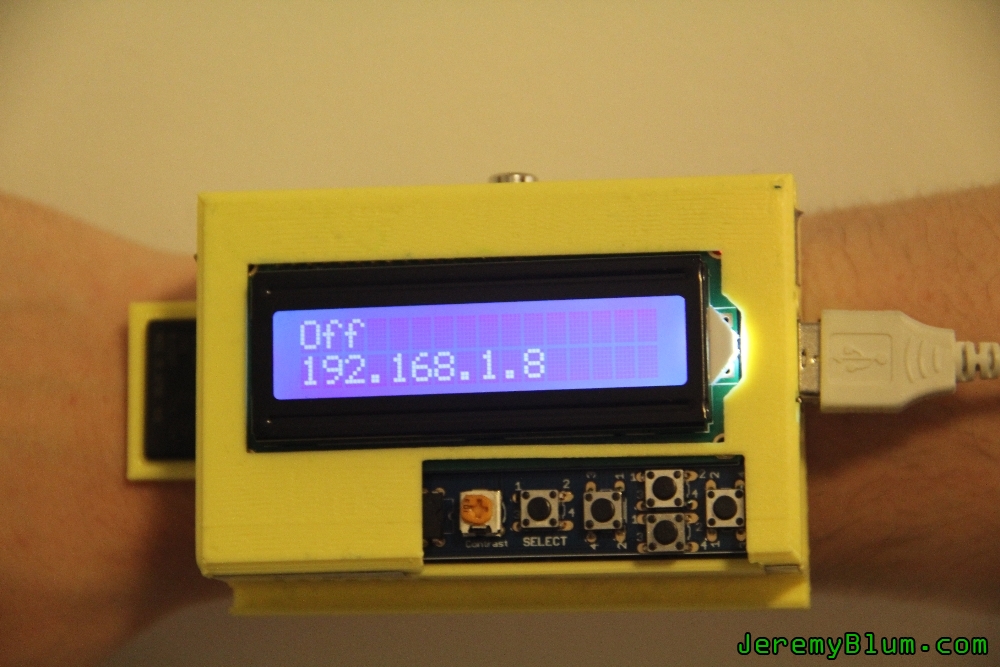

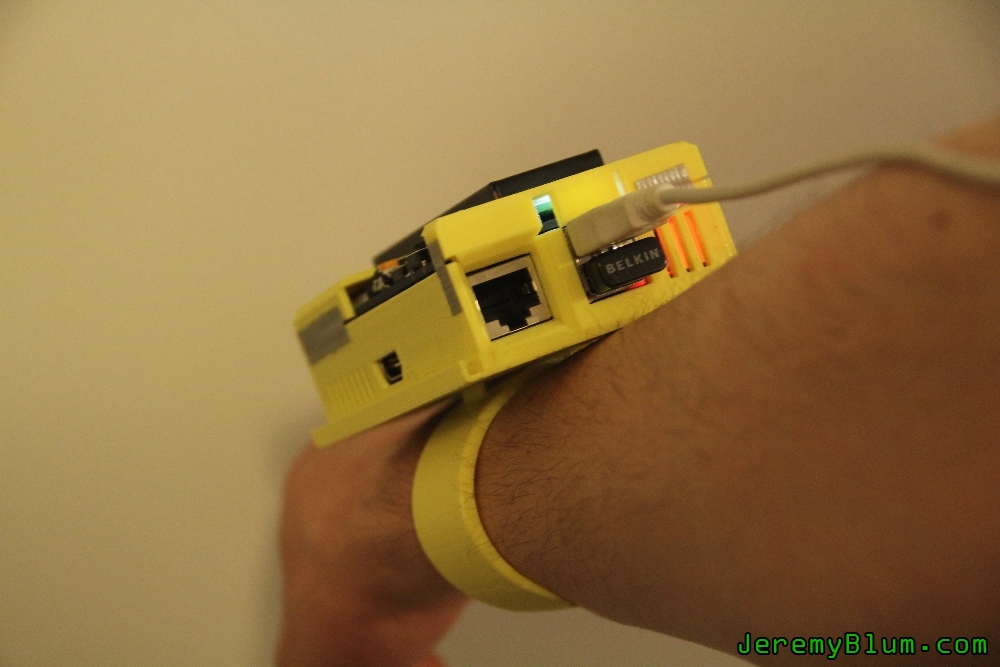

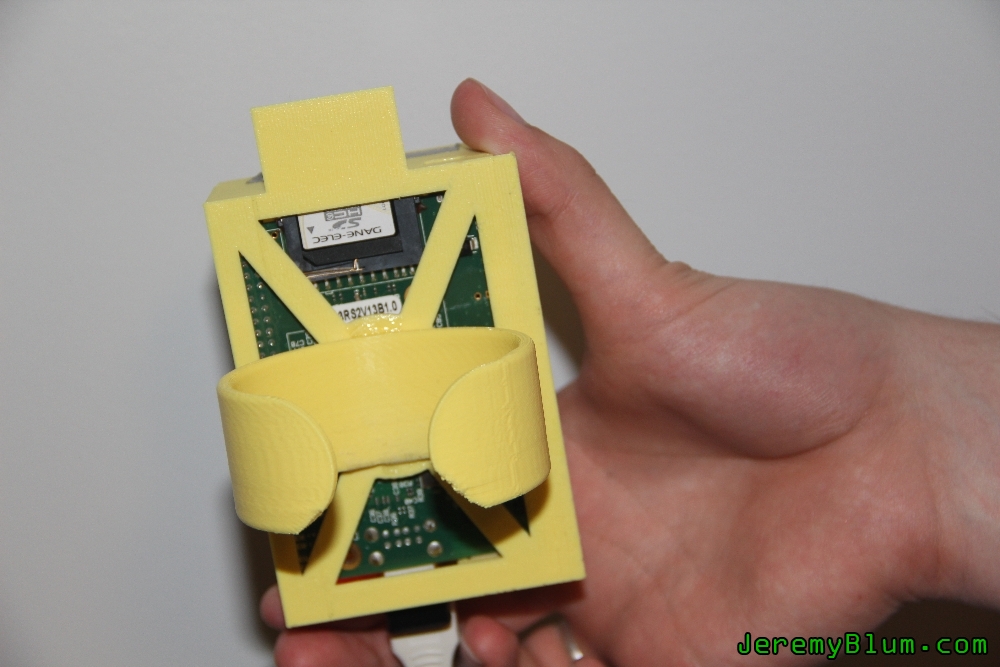

- Raspberry Pi Linux Wrist Computer. Controlling the system and connecting to the internet is a Raspberry Pi Linux computer paired with an LCD/5-button Pi-plate from Adafruit Industries. I won the Raspberry Pi in a contest from the awesome folks at Readyforce (now LookSharp). The whole thing is mounted in a wrist enclosure that I designed and 3D printed on my MakerBot Replicator. For better or for worse, the 5V line on the host USB ports of the Raspberry Pi is connected directly to main 5V supply for the board, so I was actually able to power the Raspberry Pi via the 5V from my LED PCB cap unit using the same USB cable that sends serial commands to it. So, the only two things plugged into the Pi are a WiFi dongle and a USB-to-FTDI cable that goes to the cap. Running on the Pi are a number of Python scripts that launch at boot, as well as a small MySQL database. The scripts run concurrently; they mange the on-screen menu, polling the the pushbuttons, checking for updates from the remote webserver, tweeting updates, managing the WiFi connection, and facilitating control of the cap PCB via serial commands sent over the USB-to-Serial adapter. The local MySQL database maintains simple state information such as the last ID that was tweeted, the present operation mode, brightness settings, etc.
- Remote Webserver. A remote webserver hosts the controlmycap.com mobile site, as well as another MySQL database that holds information about all the color requests that have been made to the cap. The mobile website is built using a JQuery Mobile UI front-end, paired to a python back-end via AJAX JSON calls. My wrist computer queries the MySQL database on this remote server for updated commands.
- WiFi Hotspot. I used the FoxFi app on my Samsung Galaxy S4 smartphone to generate a WiFi hotspot through which my Raspberry Pi could connect to the the internet.
During graduation weekend, the “Control-my-Cap” system was a huge success. Approximately 200 color requests were sent to the cap over the course of two days. At one point during the commencement address, the 3G and 4G networks at Cornell crashed for a few minutes due to the insane number of people all on the smartphones at once in the stadium. This, in turn, caused one of my python web-checking scripts to crash. However, a simple “hat reboot” fixed this. People very quickly realized that I wasn’t requiring them to sign into twitter to send a color, so they started sending colors from rediculous usernames, including the present of the university, David Skorton, (while he was giving the commencement address), and US president Barack Obama; this gave me a pretty good laugh:
Thanks @DavidSkorton! I'm about to cycle to your color: #6cd6e6 (ID: 133)
— Jeremy's Cap (@JeremysCap) May 26, 2013
Thanks @BarackObama! I'm about to cycle to your color: #857466 (ID: 143)
— Jeremy's Cap (@JeremysCap) May 26, 2013
Check out these photos of both my Graduation, and the Control-my-Cap System. High-Res versions of these photos can also be found in my flickr set.
Supporting Documentation, 3D Designs, and Code
You can find even more system specifications within the README files of the project’s git hub repo. 3D Designs can also be found on Thingiverse. This project is licensed via a Creative Commons Attribution-ShareAlike 3.0 Unported License. Please Attribute and Share-Alike.
Control-my-Cap in the News
- 05/30/2013 – “Cornell student’s graduation cap sports super-bright LEDs that attendees control from the web” on Engadget.com
- 05/30/2013 – “Raspberry Pi + Graduation Cap = Totally Awesome” on the ReadyForce Blog
- 05/31/2013 – “LED mortar board battles suns brightness with 21W of power” on hackaday.com
- 06/03/2013 – “Crowdsourced Colors with Control My (Graduation) Cap” on the MAKE: blog
- 06/04/2013 – “Lighting up graduation with a 3D printed web-connected LED cap” on 3ders.org
- 06/04/2013 – “Web-Connected Graduation Cap ‘Control My Cap'” on the Adafruit Blog
- 06/05/2013 – “Jeremy Blum remote controlled graduation cap” on the Dangerous Prototypes Blog
Blog Posts about the Control-my-Cap
- 05/30/2013 – How I connected my Graduation Cap to the Internet
